From Concept to Street
3D printing, Industrial design
2022-Present
The Process Behind Custom Motorcycle and Automotive Parts
Designing components for motorcycles or vehicles is never a one-size-fits-all task. Each project begins with a deep understanding of what makes it unique — whether it's a rider's specific ergonomic need, a stylistic direction, or a functional performance upgrade. The process is as technical as it is creative, and it's rooted in close collaboration with the client.
Discovery & Research

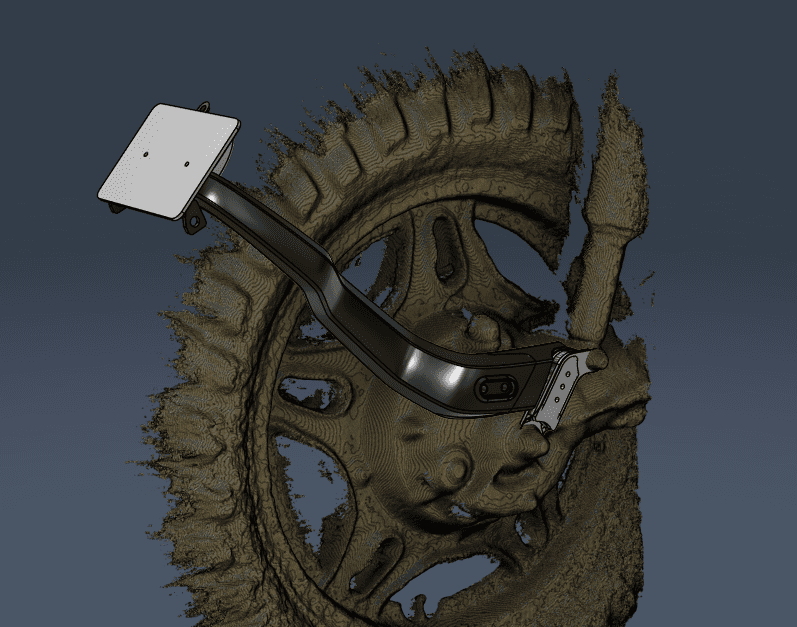

Every project starts with a conversation. Together with the client, we define the part’s function, aesthetic intent, and technical constraints. Whether the goal is to improve comfort, achieve a unique look, or solve a specific mechanical challenge, the first step is always to listen, observe, and advise. Once the purpose of the part is defined, we 3D scan the relevant area of the motorcycle or vehicle to capture accurate geometries. Fine manual measurements are then taken to calibrate the scan and ensure sub-millimeter precision critical for a seamless fit and flawless integration.
Design & Co-Creation
With the foundational data in place, we move into the design phase. Initial sketches are developed to explore form, function, and mounting strategy. These sketches are shared and discussed with the client a process that balances aesthetic goals with technical feasibility. Once a direction is agreed upon, the part is modeled in 3D CAD, considering every detail from curvature to clearance. Feedback loops with the client remain active, ensuring the design stays aligned with their vision and our performance criteria.
Prototyping & Iteration

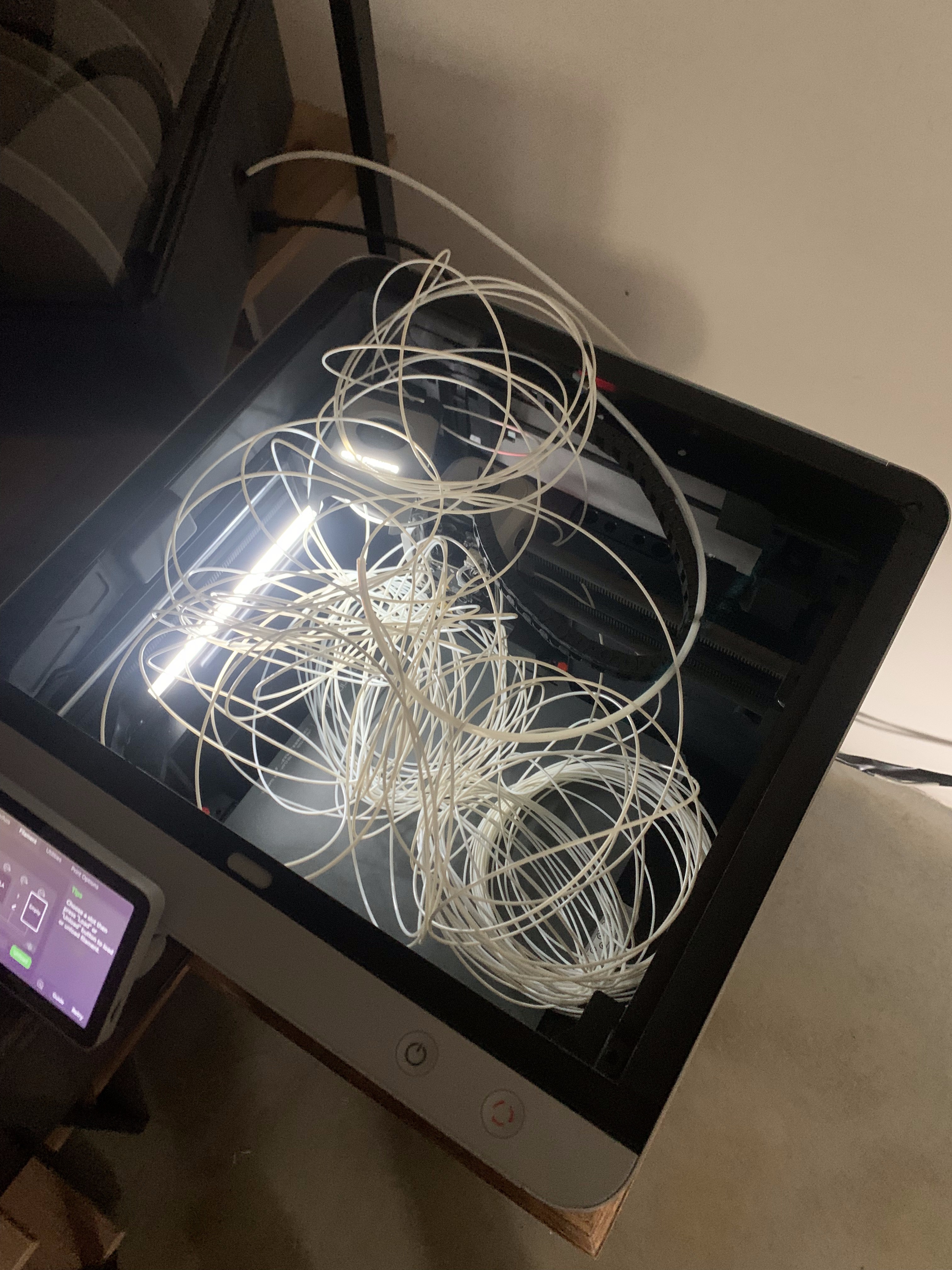

Prototyping is where design becomes tangible. Rapid prototypes often 3D printed in PLA or paper-based mockups are used to evaluate fit, ergonomics, and visual harmony. Testing is performed directly on the motorcycle, allowing for real-world feedback under actual use conditions. The design is adjusted as needed, with multiple iterations refined until the part not only performs perfectly but enhances the overall experience of the bike both visually and functionally.

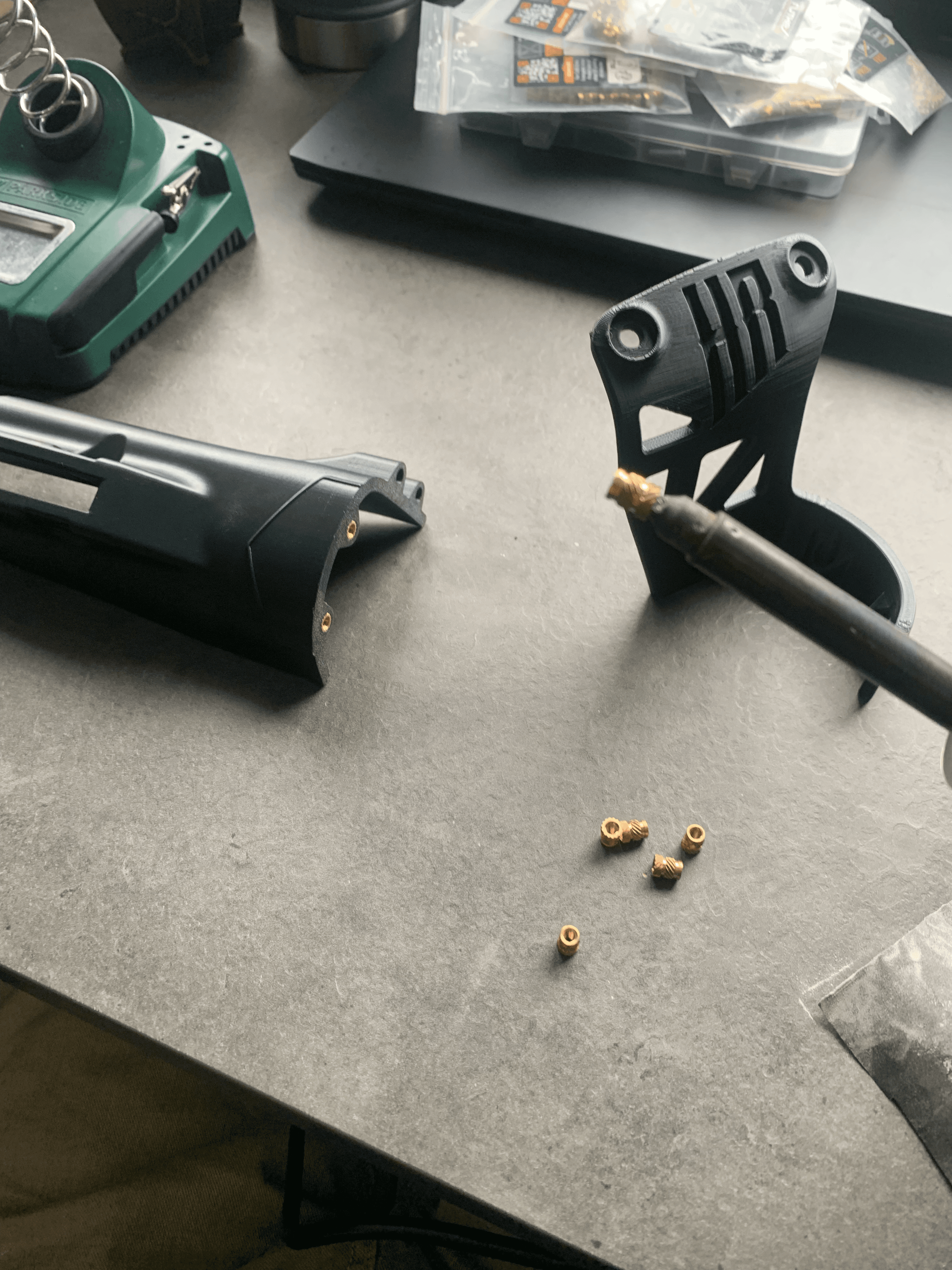

Join Parts.
Heated inserts sre used to join 3D prionted parts

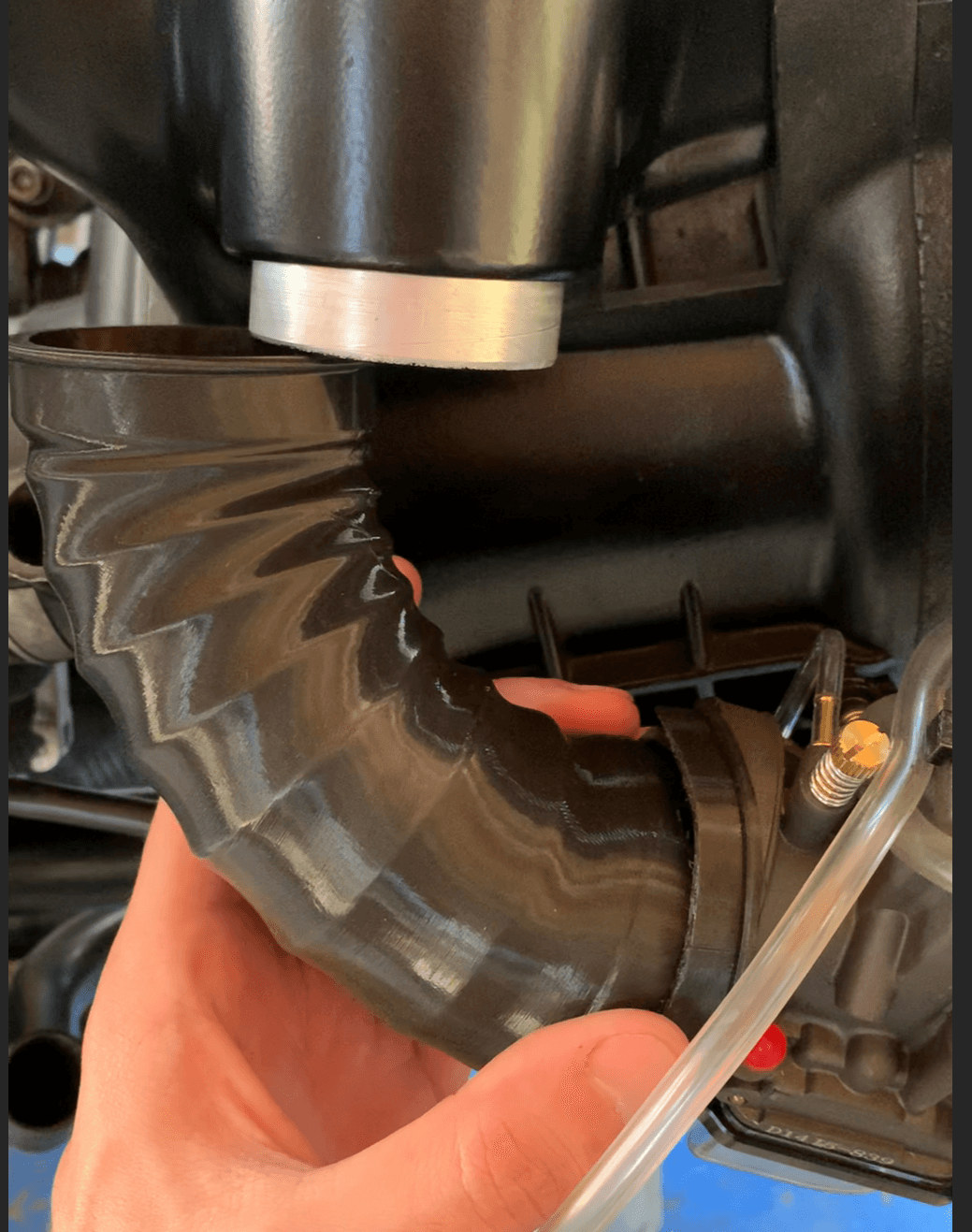

Test Fits.
Testing the fit of every piece is crucial for the overall design
Production & Delivery
Once the prototype is validated, the final piece is manufactured using the material best suited to the part’s function from carbon-reinforced nylon to ASA, or CNC-machined aluminum for components that demand extra rigidity and finish. Each piece is delivered as a finished component, along with mounting instructions to ensure a straightforward installation process.
